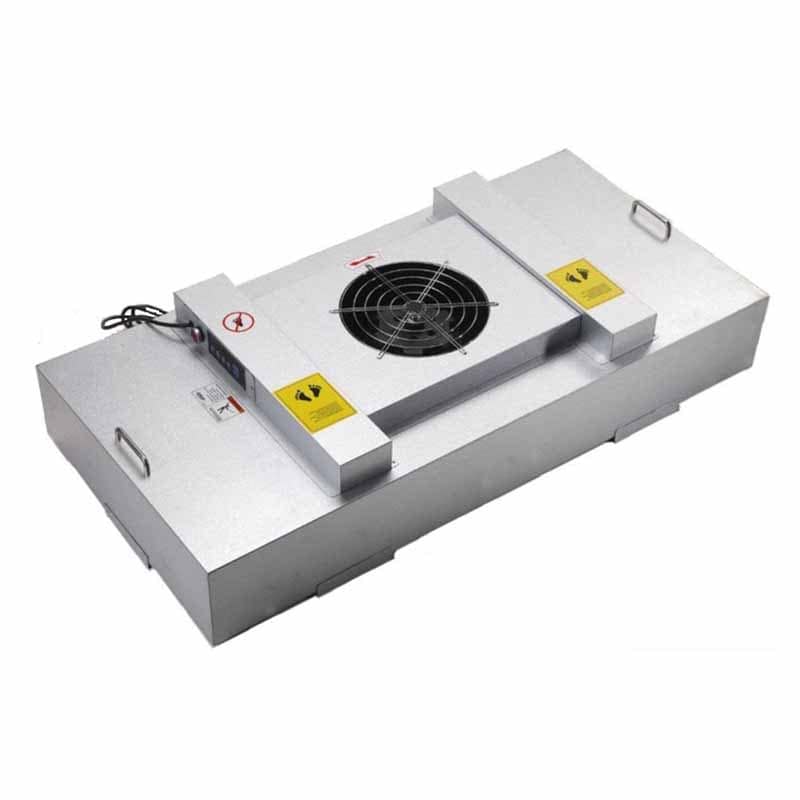

Fan Filter Unit
A Fan Filter Unit (FFU) is a motorised unit, which helps in the air filtering process and provides clean, filtered air to a cleanroom. Fan filter unit is a flexible and economic solution, which provides purified or filtered air to clean rooms, laboratories, manufacturing units, medical facilities and many more by removing harmful particles present in the air.
FFU or Fan Filter Unit comes integrated with HEPA filters or ULPA filters, fan and control systems. Air is supplied using the fan, through a pre-filter and then via the integrated HEPA or ULPA filters. This process helps in filtering the air of any airborne particles or sub-micron particles, which ensures that pure and filtered air is supplied in the clean room.
Product features
- HEPA Fan Filter Unit for clean room can be easily installed as per the change in requirement or while any maintenance activity. It does not require any additional power lines to run.
- Painted white, expanded metal face screen.
- Low sound, low watts and low operating costs.
- Custom sizes and configurations available.
- A Fan Filter Unit for Clean Room helps in providing the uniform air speed across the filter face, which assists in managing a consistent clean room environment
- HEPA (High-Efficiency Particulate Air) filters in the FFUs are rated 99.995% efficient at removing particles ≥ 0.3 microns
- A Fan Filter Unit can run for years with no additional maintenance and still manages to provide a 24 x 7 operation to assist in clean room environment (depending on the air quality)
- Best fit for Labs and pharma / electronic clean rooms
Standards
Housing Material : Galvanized, Stainless Steel, Aluminum
Power Supply : 220V 1 Phase 50/60 Hz
Air Velocity : 0.3-0.5 m/s
Total Static Pressure : TSP 250 Pa
Cabinet Material : Stainless (SUS430, SUS304), AL-ZN Alloy Sheet, Galvanized Sheet Iron
Fan Runner : Airfoil Turbo Fan Runner
Airflow Control : 3 Speeds / Stepless Speed Monitored Type
Filter Efficiency : Over 99.99% at particle Dia., Over 0.3μm or 99.9999% at 0.1μm
Filter Frame : Aluminum
Voltage Type : 1 ph 110V-220V, 3 ph 220V-380V, 50/60 Hz
Noise Level (dBA) : < 60
Optional : Pre Filter, Collar, Insulation, Hanger, Electrical Cable
Specifications
| Model | Housing Size mm (H x W x D) | Filter Size mm (H x W x D) | Rated Airflow (CMM) | Power Consumption (W) |
|---|---|---|---|---|
| FFU-220EL | 575 x 575 x 290 | 570 x 570 x 70 | 10 | 180 |
| FFU-240EL | 575 x 1175 x 250 | 570 x 1170 x 70 | 15 | 180 |
| FFU-440EL | 1175 x 1175 x 290 | 1170 x 1170 x 70 | 30 | 220 |
