Air Washers

+91-8091007777

make a call

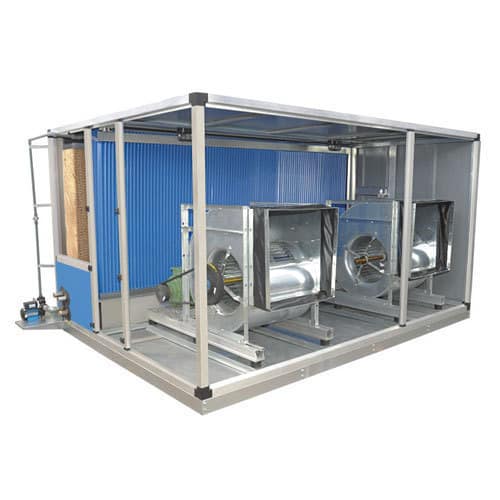

A Industrial air washer system is a hybrid appliance, a combination of an air purifier ,a humidifier and 100% fresh air supplying Air cooler. Like conventional humidifiers, industrial air washers add therapeutic moisture to the air. And, like a conventional air purifier, an air washer removes symptom-triggering allergens from the air. It also cools the air like an Evaporative air cooler. Therefore, they are capable of soothing your uncomfortable dry air symptoms and easing your allergies. The pre-dust filters prevents dust particles from entering in the the area to be cooled.

Product features

Single speed wired Remote controller with single phasing and overload protection.
Air washers reduces temperature upto 19 Deg C in Hot & Dry Climates.Consumes upto 80% less electricity than refrigerated air conditioning.
Multi speed option with VFD to control air flow as per requirement.
Low running cost compared to Air Conditioners.
Rust free Stainless Steel Tanks.
AMCA Certified Centrifugal Blowers.
IE2 Efficiency ,IP 55 Protected Electric Motors of Siemens /ABB/CG/Havells make.
Very Effective cooling in hot & dry climate areas.
Unique and non-clogging type water distribution system.
Auto water drain facility.

Advantages of Air Washers

Air washers has the advantage of being an hybrid appliance, a combination of an air purifier and a humidifier. Like conventional humidifiers, air washer add therapeutic moisture to the air.

And, like a conventional air purifier, an air washer removes symptom-triggering allergens from the air. Therefore, they not only cool the air but have the capability of soothing your uncomfortable dry air symptoms and easing your allergies.

Fan Features

The fans are of international standard and are AMCA certified.
Centrifugal blower forward / backward curved as per static pressure requirements.
The fans are static and dynamically balanced.

Electric Motors

TEFC Squirrel Cage Induction Motor , IP 55 Protected VFD Compatible induction motor of Standard make siemens/CG/Havells /ABB etc.

Cooling Pads

High quality Evaporative Cooling Pads CELdek-Munters/ Hu-Tek / Eco-Cool make are used in Air washer for high saturation and cooling efficiency upto 90%. The Cooling Pad of Air Washers is made of cellulose ( Pulp ) sheet and available in 5 & 7mm flute sizes. The Cellulose Pad is cross-corrugated and coated with anti-rot, rigidifying and wetting agent.

Specifications

MODEL	AIR FLOW		FAN SIZE (MM)	PAD AREA (SQ. FT)	RPM/MOTOR KW AT A STATIC PRESSURE		Dimensions
	CHM	CFM			40 MM WG	50 MM WG	LENGTH	WIDTH	HEIGHT
AWS- 50	5000	3000	315 * 1	6	1005/1.1	974/1.5	1690	1100	970 + 100
AWS- 85	8500	5000	400 * 1	10	708/2.2	797/3.5	1920	1700	970 + 100
AWS- 170	17000	10000	560 * 1	20	584/3.7	656/5.5	2300	1700	1590 + 100
AWS- 250	25000	15000	710 * 1	30	457/5.5	514/7.5	2600	2000	1890 + 100
AWS- 340	34000	20000	800 * 1	40	398/7.5	446/9.3	2900	2620	1890 + 100
AWS- 425	42500	25000	900 * 1	50	359/11.0	405/15.0	3100	2750	2200 + 100
AWS 510	51000	30000	1000 * 1	60	320/11.0	362/15.0	3300	3300	2240 + 100
AWS- 600	60000	35000	1000 * 1	70	318/15.0	357/18.5	3300	3810	2240 + 100
AWS- 680	68000	40000	800 * 2	80	398/7.5*2	446/9.3*2	2940	5160	1920 + 100
AWS- 765	76500	45000	800 * 2	90	399/9.3*2	445/11.0*2	2940	4850	2240 + 100
AWS- 850	85000	50000	900 * 2	100	359/11.0*2	405/15.0*2	3100	5400	2240 + 100
AWS- 1020	1,02,000	60000	1000 * 2	120	320/11.0*2	362/15.0*2	3300	4850	2810 + 100
AWS- 1200	1,20,000	70000	1000 * 2	140	318/15.0*2	357/18.2*2	3300	5650	2810 + 100
