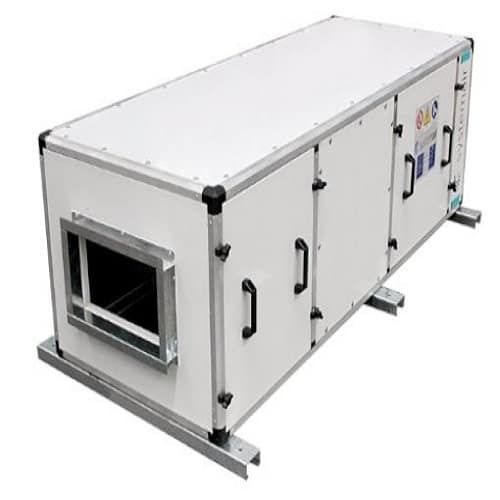

Ceiling Suspended Air Handling Unit
Kleanfil International is regarded to be one of the renowned, popular and top-notch manufacturers of Ceiling Suspended Air Handling Unit.
We highly regard the aspect of quality and that’s the reason why we make use of the premium quality raw materials which are derived from the most popular as well as best names in the world. Our Ceiling Suspending Air Handling Units are one of the best in the market and provides a comfortable environment which is similar to air-conditioned rooms. By combining the diverse functional units in this machine, it is possible to provide equipment with options ranging from common ventilation with filtration to a complete air treatment. Just like their name, they are mounted below the ceiling.
Product features
- Energy Efficient IE2/ IE3 ,IP -55 protection Electric Motors.
- High efficiency AMCA certified DIDW centrifugal Fans used for best performance.
- Casing manufactured with Extuded aluminium profile with & without thermal break .
- 25mm and 50mm thick Double Skin Panel Construction.
- Horizontal Floor Mounted AHUs are of pentapost construction with Thermal & Non-Thermal Break Profiles.
- Casing sheet metal thickness shall range from 0.6mm to 1.0mm as per requirement.
- Cabinet GPsheets shall be Pre-painted, Powder Coated & GSS .
- Heat Exchanger coil section provided with SS drain tray.
- High Performance cooling coil with copper tubes and aluminium fins.
Capacity range : 1000 CFM to 8000 CFM
Applications
Hotels, Hospital, Offices, Malls, Electronic Industries, Restaurants, Clubs, Banquet Halls etc.
Specifications
| SR NO. | MODEL | AIR VOLUME (CFM) | FAN DIA (INCHES) | MOTOR POWER (KW) | |||
|---|---|---|---|---|---|---|---|
| LENGTH (L) | WIDTH (W) | HEIGHT (H) |
|||||
| 1 | CS-10 | 1000 | 7˝x7˝ | 0.55 | 1200 | 790 | 460 |
| 2 | CS-15 | 1500 | 7˝x7˝ | 1.1 | 1200 | 1010 | 460 |
| 3 | CS-20 | 2000 | 9˝x9˝ | 1.1 | 1200 | 1010 | 570 |
| 4 | CS-25 | 2500 | 10˝x10˝ | 1.5 | 1310 | 1230 | 570 |
| 5 | CS-30 | 3000 | 12˝x12˝ | 1.5 | 1310 | 1120 | 790 |
| 6 | CS-40 | 4000 | 15˝x15˝ | 2.2 | 1420 | 1230 | 900 |
| 7 | CS-45 | 4500 | 15˝x15˝ | 2.2 | 1420 | 1340 | 900 |
| 8 | CS-50 | 5000 | 15˝x15˝ | 3.7 | 1530 | 1560 | 900 |
| 9 | CS-55 | 5500 | 18˝x18˝ | 3.7 | 1530 | 1450 | 1010 |
| 10 | CS-60 | 6000 | 18˝x18˝ | 3.7 | 1530 | 1560 | 1010 |
